Description

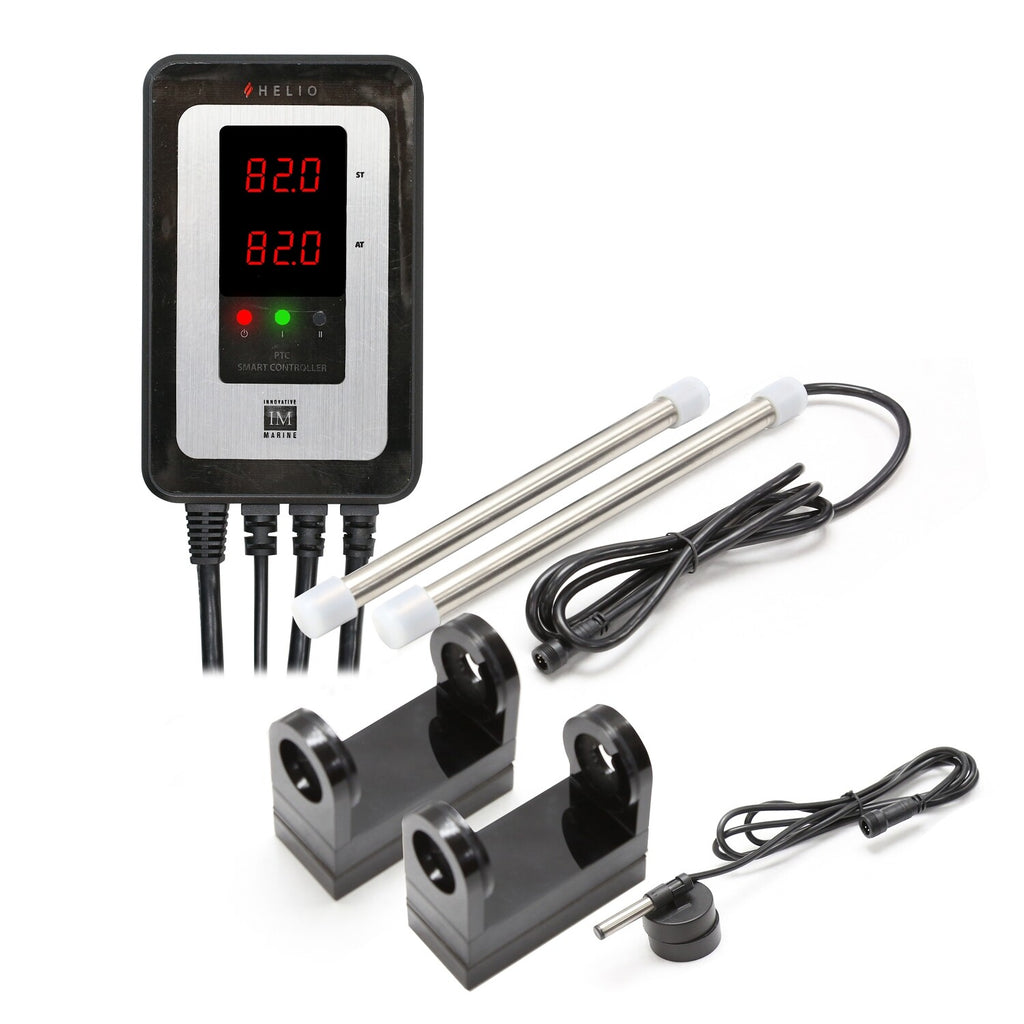

Helio 400 Watt PTC Smart Heater - [2 x 200W] Double Element
Aquarium Size: 50 - 100 Gallons
*Based on +10°F water temperature increase from current ambient temperature.
Heating Element Dims: L 7" x D .80"
Remote Sensor Dims: L 2.3" x D .31"
Helio Smart Controller Dims: L 3.13" x W 1.31" x H 5"
Helio PTC Smart Controller Specifications
-
Factory Preset Temperature: 77°F
-
Factory Preset Low Alarm: 74°F
-
Factory Preset High Alarm: 80°F
-
Temp Set Range: 59° - 95°F
-
Low Alarm General Range: 57° - 93°F
-
Low Alarm Minimum Range: -2°F from Set Temperature
-
High Alarm General Range: 60° - 96°F
-
High Alarm Minimum Range: +1°F from Set Temperature
-
Accuracy: < ±1°F
-
Resolution: 0.1°F
- Calibration Range: ±9°F
- Watt/Amp Draw: 400W 120V / 3.33amps
Error Code Quick Guide
E1-Remote Sensor Not Connected: The remote sensor is not connected. Check the connection between the controller and the remote sensor.
E2-Element(s) Not Connected: One or both elements are not connected. Check the connection between the controller and element(s).
E3-High Temperature Alarm: The aquarium's water temperature has exceeded the high temperature set point.
E4-Low Temperature Alarm: The aquarium's water temperature has subceeded the low temperature set point.
E5-Element (I) Error: Element (I) is out of water or low water flow detected around element (I).
E6-Element(II) Error: Element (II) is out of water or low water flow detected around element (II).
E7-Remote Sensor Error: Remote sensor has been detected to be out of water or a sudden temperature swing.
